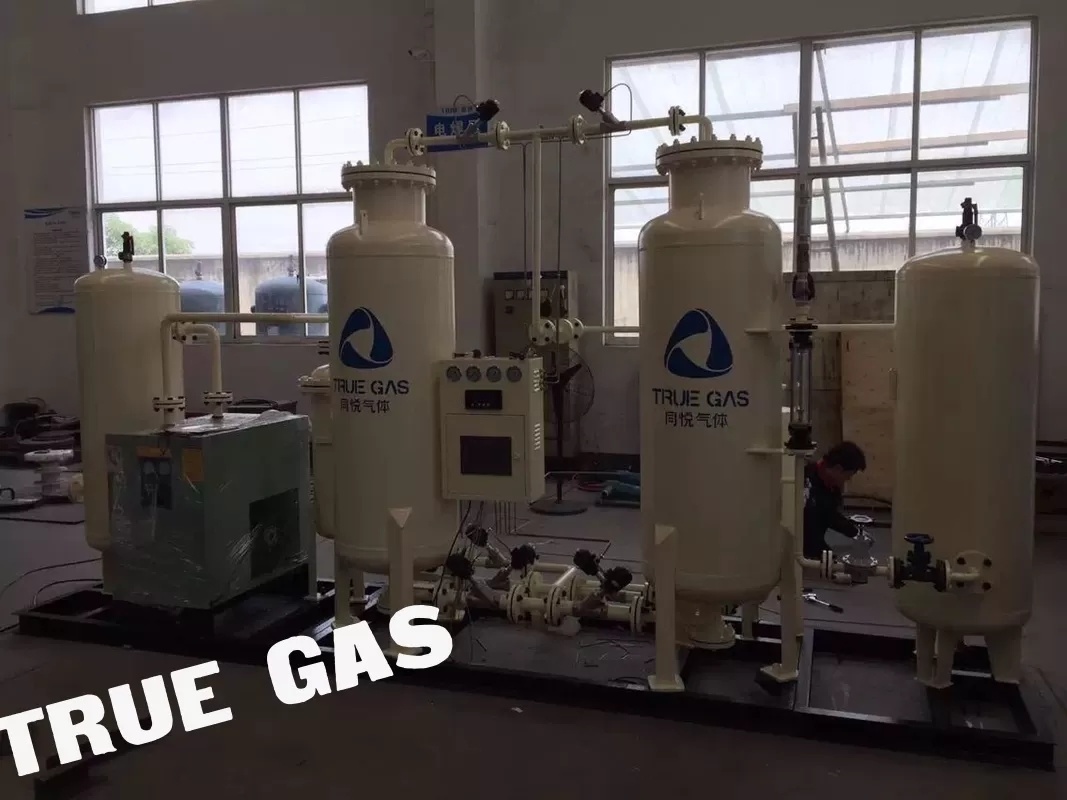

High Pressure 0.65Mpa 3.5Nm3/H PSA Nitrogen Generation System manufacturer will show you the working process of pressure swing adsorption oxygen generator

High Pressure 0.65Mpa 3.5Nm3/H PSA Nitrogen Generation System manufacturer tells you that the working process of the oxygen generator is controlled by a programmable controller to control five two-position five-way pilot solenoid valves, and then solenoid valves control ten pneumatic pipeline valves. It is done by opening and closing.

Five two-position five-way pilot solenoid valves control the left suction, equalizing pressure, and right suction states respectively. High Pressure 0.65Mpa 3.5Nm3/H PSA Nitrogen Generation System manufacturer tells you that the time flow of left suction, equalization, and right suction has been stored in the programmable controller. In the power-off state, five two-position five-way pilot solenoid valves The pilot air is connected to the closing port of the pneumatic pipe valve.
High Pressure 0.65Mpa 3.5Nm3/H PSA Nitrogen Generation System manufacturer tells you that when the process is in the left suction state, the solenoid valve that controls the left suction is energized, and the pilot air is connected to the left suction inlet valve, the left suction production valve, and the right exhaust The valve opening port makes these three valves open to complete the left suction process, and at the same time the right adsorption tower desorbs.
The manufacturer of High Pressure 0.65Mpa 3.5Nm3/H PSA Nitrogen Generation System tells you that when the process is in a pressure equalization state, the solenoid valve that controls the pressure equalization is energized, and other valves are closed; the pilot air is connected to the opening port of the pressure equalization valve to open the valve. Complete the pressure equalization process.
High Pressure 0.65Mpa 3.5Nm3/H PSA Nitrogen Generation System manufacturer tells you that when the process is in the right suction state, the solenoid valve that controls the right suction is energized, and the pilot air is connected to the right suction inlet valve, right suction production valve, and left exhaust The valve opening port makes these three valves open to complete the right suction process, and at the same time the left adsorption tower desorbs. The manufacturer of High Pressure 0.65Mpa 3.5Nm3/H PSA Nitrogen Generation System tells you that in each process, except for the valve that should be opened, other valves should be closed.
