Stainless Steel PSA Nitrogen Gas Generator / Nitrogen Generation Plant
关键词:
制氮机、空压机、制氧等气体处理设备
产品描述
Big System Carbon Steel PSA Nitrogen Generator System Blue, Capacity 110Nm3/h

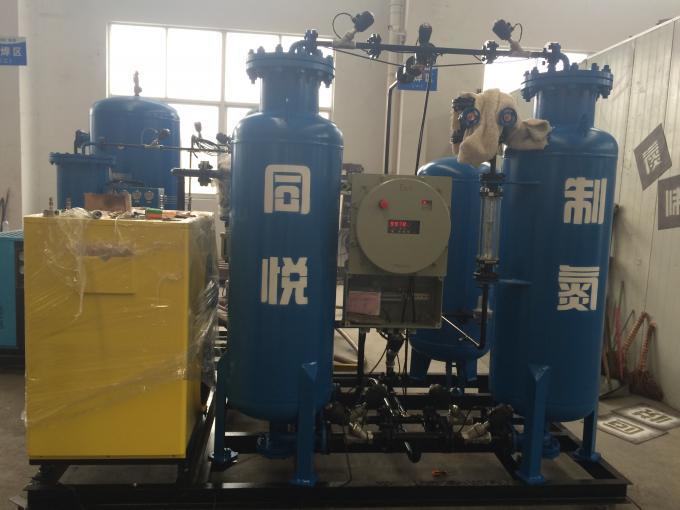

This whole system of this equipment is include two gas storage tanks, nitrogen generator part, cooling dryer, air compressor, and a set of filters. Prodcuts can be customerized according to cunstormer's requirements (purity, capacity, output pressure, need air booster or not)
Chemical Use
Blowing containers, pipelines, reactors and isolation rooms; synthetic fiber spinning, wire drawing chlorination prevention, equipment corrosion prevention; nitrogen charging during production of coatings and paint, to prevent polymerization during oil drying; providing oil tankers with protective gas (nitrogen is used on the oil surface to seal and clean gas); inert gas supply to ocean engineering; dry coke quenching, catalyst regeneration, petroleum fractionation, raw material of nitrogen fertilizer, catalyst protection, and so on
The product is mainly used for medicine packaging, medicine replacement and medicine conveying in pharmaceutical industry. The medicine nitrogen making machine is equipped with the sterilization filter to reach the standard of medicine industry.
Product Details
|
Air Separation Nitrogen generator 2.Nitrogen purity: 99%-99.9995% 3.Nitrogen dew point: ≤-40℃ (normal pressure) 4.Nitrogen pressure: 0-0.6Mpa Adjusting |
|
Specifications:
| No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
|
1 2 3 4 |
TY-3-39 TY-5-29 TY-5-295 TY-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
TY-5-49 TY-8-39 TY-12-295 TY-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
TY-10-49 TY-15-39 TY-25-295 TY-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
TY-15-49 TY-22-39 TY-35-295 TY-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 | 2100*1800*2200 |
|
17 18 19 20 |
TY-20-49 TY-30-39 TY-50-295 TY-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 | 2200*1800*2200 |
|
21 22 23 24 |
TY-30-49 TY-45-39 TY-75-295 TY-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 | 2400*1900*2200 |
|
25 26 27 28 |
TY-40-49 TY-60-39 TY-100-295 TY-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 | 2500*2100*2500 |
|
29 30 31 32 |
TY-50-49 TY-70-39 TY-120-295 TY-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
TY-60-49 TY-90-39 TY-160-295 TY-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
| 37 | TY-80-49 | 80 | 99.99% | 0.5 | |
|
38 39 40 |
TY-120-39 TY-200-295 TY-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
TY-100-49 TY-140-39 TY250-295 TY-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
| ... | ... | ... | ... | ... | ... |
Features
1. The nitrogen purity can be adjusted from 95%-99.99%. The nitrogen gas is dry and its dew point is low, these help to preserve the food.
2. The machine features excellent cost effectiveness and fast capital payoff.
3. Its exterior is concise and small, so is to be conveniently cleaned and meet the high cleanliness requirement of the food industry.
4. The product is made of high quality equipments and its skillfully process makes itself durable in use.
