Snack Chips 99.9% 0.6Mpa PSA Nitrogen Gas Plant
关键词:
制氮机、空压机、制氧等气体处理设备
产品描述
Snack Chips 99.9% 0.6Mpa PSA Nitrogen Gas Plant

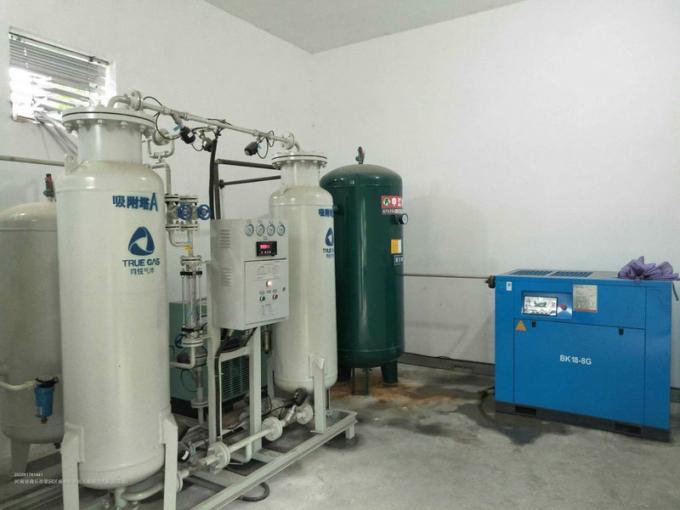

PSA Nitrogen Gas Plant Introduction
PSA Nitrogen Generator is a effective and low cost solution to produce N2 gas onsite. To get rid of the high cost and inconvenient of the Liquid nitrogen and cylinder nitrogen.
With PSA NITROGEN GENERATOR, you can get the N2 gas at the purity of 95% to 99.9995%, flow rate ranges from 5Nm3/h to 3000Nm3/h, and pressure can be design for 0.1Mpa to 50.0Mpa.
PSA Nitrogen Gas Plant Details
|
Air Separation Nitrogen generator 2.Nitrogen purity: 99.9% 3.Nitrogen dew point: ≤-40℃ (normal pressure) 4.Nitrogen pressure: 0-0.6Mpa Adjusting |
PSA Nitrogen Gas Plant Specifications for Reference:
|
No |
Model |
Capacity(Nm3/h) |
Purity |
Power(KW) |
Overall size(mm) |
|
1 2 3 4 |
TY-3-39 TY-5-29 TY-5-295 TY-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
TY-5-49 TY-8-39 TY-12-295 TY-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
TY-10-49 TY-15-39 TY-25-295 TY-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
TY-15-49 TY-22-39 TY-35-295 TY-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 |
2100*1800*2200 |
|
17 18 19 20 |
TY-20-49 TY-30-39 TY-50-295 TY-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 |
2200*1800*2200 |
|
21 22 23 24 |
TY-30-49 TY-45-39 TY-75-295 TY-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 |
2400*1900*2200 |
|
25 26 27 28 |
TY-40-49 TY-60-39 TY-100-295 TY-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 |
2500*2100*2500 |
|
29 30 31 32 |
TY-50-49 TY-70-39 TY-120-295 TY-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
TY-60-49 TY-90-39 TY-160-295 TY-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
|
37 |
TY-80-49 |
80 |
99.99% |
0.5 |
|
|
38 39 40 |
TY-120-39 TY-200-295 TY-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
TY-100-49 TY-140-39 TY250-295 TY-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
|
... |
... |
... |
... |
... |
... |
|
|
|||||
Features
1. The nitrogen purity can be adjusted from 95%-99.99%. The nitrogen gas is dry and its dew point is low, these help to preserve the food.
2. The machine features excellent cost effectiveness and fast capital payoff.
3. Its exterior is concise and small, so is to be conveniently cleaned and meet the high cleanliness requirement of the food industry.
4. The product is made of high quality equipments and its skillfully process makes itself durable in use.
