Under the balance of adsorption, when any kind of adsorbent adsorbs the same gas, the higher the gas pressure, the greater the adsorption capacity is. Otherwise, the lower the pressure, the smaller the adsorption power is.

As the chart shows, carbon molecular sieve shows difference in adsorbing oxygen and nitrogen. Carbon molecular sieve is a substance with a lot of micropores inside. The PSA principal is to achieve the separation goal of oxygen and nitrogen which based on the adsorption quantity difference in the carbon molecular sieve when the pressure is certain.

When the pressure rises, the carbon molecular sieve adsorbs the oxygen and produces the nitrogen gas. When the pressure decreases, the carbon molecular sieve starts to desorb the oxygen until the pressure equals to the ordinary pressure. At that time, the carbon molecular sieve desorbs the oxygen completely. The PSA nitrogen generator is usually equipped with adsorption towers. It controls the pneumatic valve by PLC, thus the two adsorption towers can produce the nitrogen gas alternatively. One tower adsorbs the oxygen and produces nitrogen gas, the other desorbs to regeneration to produces the required nitrogen.

Applications:

1. Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing ,etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.

3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

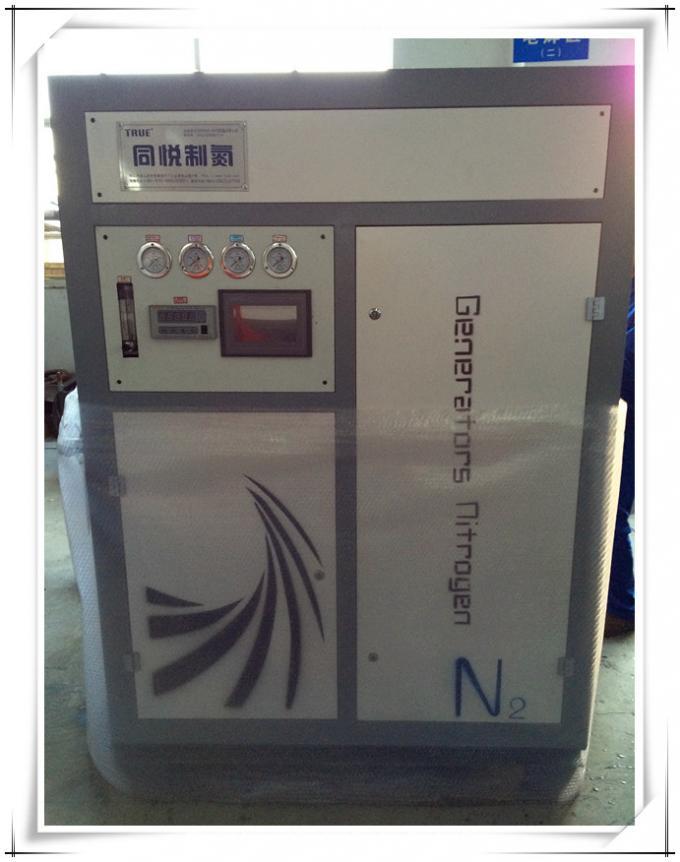

Air Separation Nitrogen generator

1.Nitrogen making system consists of air compressor, compressed air purifying device, pressure varying adsorption nitrogen generator and storage tank, which can separate the nitrogen and oxygen from the air, and get the high pure nitrogen.

2.Nitrogen flow: 5-360Nm³/h (single set)

3.Nitrogen purity: 99%-99.99%

4.Nitrogen dew point: ≤-40℃ (normal pressure)

5.Nitrogen pressure: ≤0.5Mpa

Specifications:

Model

Capacity(Nm3/h)

Purity

Power(KW)

Overall size(mm)

TY-3-39

TY-5-29

TY-5-295

TY-8-295

99.9%

99.5%

99%

95%

0.5

1800*1400*1500

TY-5-49

TY-8-39

TY-12-295

TY-15-29

99.99%

99.9%

99.5%

99%

0.5

1800*1400*1800

TY-10-49

TY-15-39

TY-25-295

TY-30-39

99.99%

99.9%

99.5%

99%

0.5

2000*1700*2250

TY-15-49

TY-22-39

TY-35-295

TY-45-29

99.99%

99.9%

99.5%

99%

0.5

2100*1800*2200

TY-20-49

TY-30-39

TY-50-295

TY-60-29

99.99%

99.9%

99.5%

99%

0.5

2200*1800*2200

TY-30-49

TY-45-39

TY-75-295

TY-88-29

99.99%

99.9%

99.5%

99%

0.5

2400*1900*2200

TY-40-49

TY-60-39

TY-100-295

TY-120-29

100

120

99.99%

99.9%

99.5%

99%

0.5

2500*2100*2500

TY-50-49

TY-70-39

TY-120-295

TY-140-29

120

140

99.99%

99.9%

99.5%

99%

0.5

2600*2200*2850

TY-60-49

TY-90-39

TY-160-295

TY-190-29

160

190

99.99%

99.9%

99.5%

99%

0.5

2800*2200*2500

TY-80-49

99.99%

0.5

TY-120-39

TY-200-295

TY-250-29

120

200

250

99.9%

99.5%

99%

0.5

3200*1400*2800

TY-100-49

TY-140-39

TY250-295

TY-290-29

100

140

250

290

99.99%

99.9%

99.5%

99%

0.5

3500*1500*2800

...
