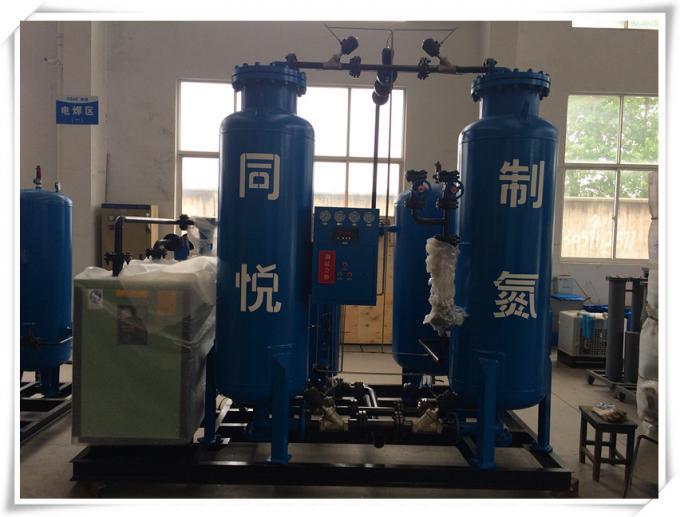

TY100Nm3/H Purity 100% PSA Nitrogen Generaotr With Air Compressor Complete System
关键词:
制氮机、空压机、制氧等气体处理设备
产品描述
TY100Nm3/h purity 100% PSA nitrogen generaotr high quality at low price equip air compressor complete system
How it works ?
PSA stands for pressure swing adsorption which means air becomes source gas, nitrogen & oxygen molecular will be adsorb by preferential adsorption.
By using pressurized adsorption and stepdown desorption, so N2 and O2 are separated discharge rich oxygen gas, ensure produce N2. The whole line system is consisted of air compressor, air buffer tank, air treatment system, PSA generator and N2 buffer tank. The vapor, dust and oil in compressed air must be removed through pretreatment, then into two columns of PSA. CMS absorbs O2 molecular, but hardly to adsorb N2 molecular. Therefore, most N2 molecular could be collected and utilized after into N2 buffer tank.
There are totally two columns in PSA generator, it alternately switch. When one column is saturated, another one is regenerated, two columns work alternately ensure nitrogen generator produces N2 continuously. Switch operation is made by PLC. Magnetic valve is connected with drive air source and pneumatic valves. Signal delivered by designed PLC, to control magnetic reversal, to move pneumatic valves. Two columns work
alternately, unattended operation.
Specifications:
| No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
|
1 2 3 4 |
TY-3-39 TY-5-29 TY-5-295 TY-8-295 |
3 5 5 8 |
99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
|
5 6 7 8 |
TY-5-49 TY-8-39 TY-12-295 TY-15-29 |
5 8 12 15 |
99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
|
9 10 11 12 |
TY-10-49 TY-15-39 TY-25-295 TY-30-39 |
10 15 25 30 |
99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
|
13 14 15 16 |
TY-15-49 TY-22-39 TY-35-295 TY-45-29 |
15 22 35 45 |
99.99% 99.9% 99.5% 99% |
0.5 | 2100*1800*2200 |
|
17 18 19 20 |
TY-20-49 TY-30-39 TY-50-295 TY-60-29 |
20 30 50 60 |
99.99% 99.9% 99.5% 99% |
0.5 | 2200*1800*2200 |
|
21 22 23 24 |
TY-30-49 TY-45-39 TY-75-295 TY-88-29 |
30 45 75 88 |
99.99% 99.9% 99.5% 99% |
0.5 | 2400*1900*2200 |
|
25 26 27 28 |
TY-40-49 TY-60-39 TY-100-295 TY-120-29 |
40 60 100 120 |
99.99% 99.9% 99.5% 99% |
0.5 | 2500*2100*2500 |
|
29 30 31 32 |
TY-50-49 TY-70-39 TY-120-295 TY-140-29 |
50 70 120 140 |
99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
|
33 34 35 36 |
TY-60-49 TY-90-39 TY-160-295 TY-190-29 |
60 90 160 190 |
99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
| 37 | TY-80-49 | 80 | 99.99% | 0.5 | |
|
38 39 40 |
TY-120-39 TY-200-295 TY-250-29 |
120 200 250 |
99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
|
41 42 43 44 |
TY-100-49 TY-140-39 TY250-295 TY-290-29 |
100 140 250 290 |
99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
| ... | ... | ... | ... | ... | ... |
