1.Mainly constructed with filtration device, carbon molecular sieve, N2 reservoir and control system

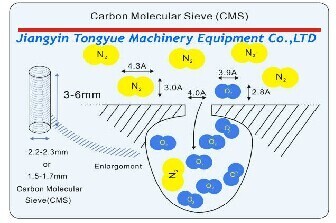

2.Intended to generate nitrogen from compressed air with carbon molecular sieve (CMS) based on PSA (pressure swing adsorption) separation technology
3. Silencers are equipped for the exhausting gas to reduce the sound level
Equipment adapts high-octane BF-200# carbon molecule sieve, core accessories are imported
4. Equipment adapts silicone oil pressure gauge with good shockproof function
5. Compatible with medium compressed air is filtered twice
Primary filtration: three class precision filter made of high-quality materials
Secondary filtration: active carbon filtration device with high-quality and capacity
6. By presetting pressure, equipment can vacuum automatically, filling N2 and testing pressure
7. Pressure sensor with high precision made by US Nova sensor
8. Vehicles applicable: motorcycles, cars, vans, mini buses and light trucks

The product is applicable to customers with low gas demand and high purity requirement, which has smaller volume and is conveniently moved, installed and used.
In addition, the company customizes more portable and smaller nitrogen making equipment such as movable shoulder and back nitrogen making equipment and embedded micro nitrogen making equipment for special customers, to meet different nitrogen making requirements of customers.

The main technical parameter list:

specifications	Nitrogen production Nm3/h	power (kW)	purity (%)	Air pressure Mpa	Producing nitrogen pressure Mpa	Overall dimensions mm
TY-3	3	0.5	99.5-99.99	0.8-1.0	0.1-0.65	570570950
TY-3	Note: for a pillow packaging machine inflatable, form a complete set of the displacement of air machine:≥0.4m³/min,≤The oil content:3ppm
TY-5	5	0.5	99.5-99.99	0.8-1.0	0.1-0.65	5705701200
TY-5	Note:for two inflatable pillow packaging machine,form a complete set of air compressor exhaust:≥0.6m³/min,≤The oil content:3ppm
TY-10	10	1	99.5-99.99	0.8-1.0	0.1-0.65	135012001650
TY-10	Note:for four pillow packaging machine or two vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥0.9m³/min,≤The oil content:3ppm
TY-15	15	1	99.5-99.99	0.8-1.0	0.1-0.65	135012001650
TY-15	Note:for five pillow packaging machine or three vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥1.25m³/min,≤The oil content:3ppm
TY-20	20	2	99.5-99.99	0.8-1.0	0.1-0.65	140012001800
TY-20	Note:for seven pillow packaging machine or five vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥1.5m³/min,≤The oil content:3ppm
TY-30	30	2	99.5-99.99	0.8-1.0	0.1-0.65	140012001800
TY-30	Note:for ten pillow packaging machine or seven vertical packaging machine inflatable,form a complete set of air compressor exhaust:≥2m³/min, ≤The oil content:3ppm
TY-40 TY-50 TY-60 TY-70 TY-80 TY-100 TY-200
