TY 100 m3/h purity 99% PSA nitrogen generator filling system for chemcial usage pressure 16 bars

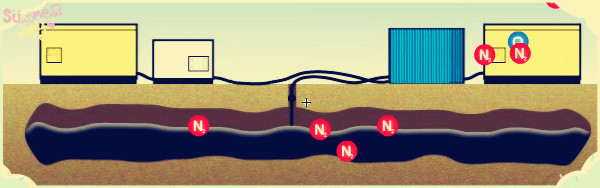

Applications
1.) Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
2.) Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3.) Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

Main parts of nitrogen generator

Project	Type	Quantity	Remark
PSA adsorption tower	Professional design	2pieces/10kg	Special pressure vessel manufacturer
Carbon Molecular Sieve	MSC-3KT-172	3500kg	Takeda Japan
Vortex airflow distributor	Professional design	2 pieces	Technical Carbotech from Germany
Self complement compact device	Professional design	2sets	Jiangyin Tongyue
single unit processing part	/	1 set	SMC-Japan
Sample pressure reduce valve	/	1 piece	SMC-Japan
Direct current 24V power	/	1 set	Taiwan-Mingwei
Pneumatic valves Pneumatic valves	DN100	5 pieces	Burkert Germany Burkert Germany
	DN50	4 pieces
	DN20	1 pieces
Magnetic valve	4V210-24V	10 pieces	Taiwan Airtac
Metal flow meter	LZZ-50	1 piece	Changzhou Shuanghuan
Control system	TPC7062K	1set	(color touch screen )Kunlun Tongtai
Muffler	TY-500X	1 set	Jiangyin Tongyue
Pipe valve system	bprofessional produce	1 set	Jiangyin Tongyue

PSA N2 making processing

(1) Inlet air:The air compressor press the air into transporting pipe,then use the compressed air clarification system to remove the water,oil,dust and so on,reach to air buffer tank,then pass through air buffer tank into two adsorption tower.

(2) Adsorption: When air inlet adsorption tower,during the pressure function,O2 and CO2 be adsorbed quickly.Formed N2 near the outlet position.

(3) Air outlet :When the adsorption process working in the best status(Adsorption N2:O2 is the smallest),open the outlet valve,transport the N2 into N2 buffer tank.

(4) Average pressure:After finished exhaust,rest some N2 in the tower,so let it into another tower adsorb again with new air.This process is finished when the pressure of two tower is the same,so called average pressure.

(5) Exhaust :After average pressure finished,need to releasing the air which adsorb by CMS to be ready for next adsorption,the programme will open the air releasing valve automatically,let the pressure in the tower back to the original status,meanwhile release the O2,CO2,so than the CMS can adsorb new air again.

(6) These two tower exchange work can got N2 purity 99.9 %
