220v Modular PSA Nitrogen Gas Generator System Easy Operation
关键词:
制氮机、空压机、制氧等气体处理设备
产品描述

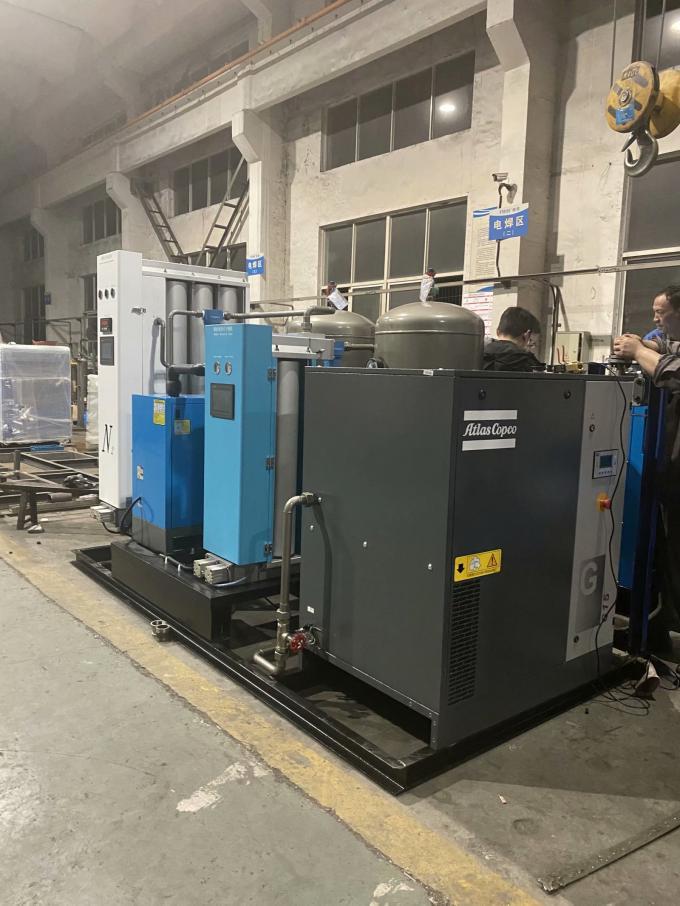

Modular Nitrogen Generator
PSA Modular nitrogen generator (pressure swing adsorption)technology,using air as raw materials,quality selection of adsorbent,and under certain pressure,the adsorption capacity of adsorbents for oxygen and nitrogen is different,though programmable program control pneumatic valve opening and closing to control the adsorber alternate cycle,pressure adsorption and vacuum stripping,complete separation of oxygen and nitrogen,get high purity
| Model | Specification | |
| G-5MZ | ||
| N2 capacity | Nm3/Hr | 5 |
| N2 purity | % | 99.99% |
| N2 outlet pressure | Mpa | 0.1~0.6 |
| Air inlet pressure | MPa | 0.7~0.8 |
| Air inlet temperature | ℃ | ≤38 |
| Dew point | ℃ | ≤-40 |
| Working condition | ||
| Air compressor flow | m³/Min | 0.5 |
| Max working pressure | MPa | 0.8 |
| Ambient temperature | ℃ | 40 |
| N2 outlet dia | DN | 15 |
| Air inlet dia | DN | 15 |
| Working cycle | S | 40-55 |
| Regeneration mode | Pressure swing analysis and alternate purging | |
| Voltage: | 220V/50Hz | |
| Pneumatic valve | mm | DN15*5 |
| Muffler | mm | customizing |
| Adsorbent | CMS260 | 1 batch |
| Controller | PLC | Siemens |
